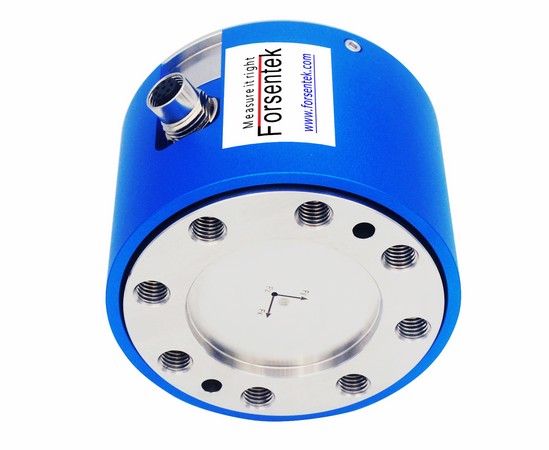

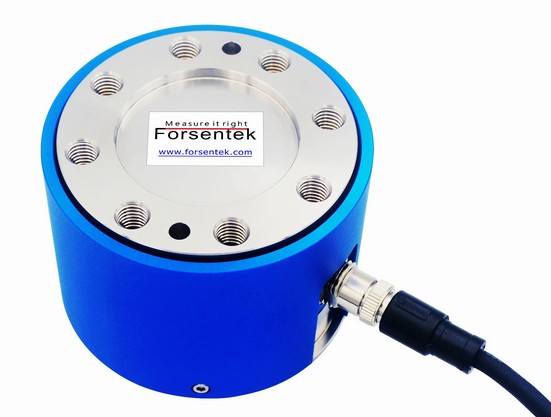

Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Load Cell

Brand Name : Forsentek

Model Number : F3S

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 990pcs/month

Delivery Time : 5-7 weeks

Packaging Details : 1pc/box

Usage : 3D force measurement

Type : Multi-component Force Sensor

Output : Analog sensor

Load direction : Fx Fy Fz

Structure : Flange to Flange

Contact Now

Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Load Cell

The F3S 3-axis force sensor is a high-performance, multi-directional load cell engineered with advanced strain gauge technology. It is capable of capturing force inputs concurrently across the X, Y, and Z axes. Featuring a durable flange-to-flange design, the sensor offers strong mechanical stability and secure integration into various setups. This makes it a dependable choice for both demanding industrial scenarios and precision-driven research applications. Its availability in multiple sizes and force capacities allows the F3S to adapt seamlessly to a range of testing needs—from lightweight component evaluations to rigorous structural assessments.

Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Load Cell

One of the key advantages of the F3S triaxial force sensor lies in its capacity configuration. The X and Y directions support measurements between 5kN and 100kN, while the Z axis is optimized for significantly heavier loads, with a range of 15kN to 300kN. This configuration makes the sensor especially effective for use cases where vertical loading plays a dominant role, including structural load validation, press-fit operations, and impact testing. Designed for consistency, it excels in both static and dynamic force monitoring. With minimized signal distortion and low cross-axis interference, the F3S ensures high accuracy and repeatability across all channels, making it a trusted tool in aerospace testing, medical biomechanics, fatigue studies, and automated quality assurance.

Beyond its precision and resilience, the F3S 3D load cell is engineered for configurability. Users can tailor the unit with application-specific mounting patterns, custom axis load ratios, and output signals—ranging from standard millivolt levels to analog or digital protocols like 0–10V, 4–20mA, RS232, or RS485. Constructed from robust materials and tested for long-term reliability, the F3S is a versatile asset for professionals who need dependable, multidirectional force data in complex environments. Its blend of customizability, measurement fidelity, and mechanical strength makes it an essential component in advanced force sensing systems.

Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Load Cell

Ordering code of 3-component load cell F3S

Ordering

code

Capacity
Fx=Fy Fz
F3S-5k-5k-15k 5kN 15kN
F3S-10k-10k-30k 10kN 30kN
F3S-20k-20k-60k 20kN 60kN
F3S-30k-30k-90k 30kN 90kN
F3S-40k-40k-120k 40kN 120kN
F3S-50k-50k-150k 50kN 150kN
F3S-100k-100k-300k 100kN 300kN

Specifications

Rated Capacity

Refer to ordering code

Sensitivity

Fx/Fy: 1.2~1.7 mV/V

Fz: 0.6~1.0 mV/V

Excitation 3-12V
Zero balance ±0.05mV/V
Non-linearity ±0.3% of the capacity
Hysteresis ±0.3% of the capacity
Non-repeatability ±0.1% of the capacity
Creep(5min)

±0.1% of the capacity

Safe overload 150% of the capacity
Ultimate overload 200% of the capacity
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.02% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance

145±20Ω

Output resistance

Fx/Fy:350±30Ω

Fz:700±50Ω

Insulation resistance >2000M ohms
Ingress protection IP50 (Optional IP65)
Material of element

Stainless steel

Cable

Ø6x5000mm 8-core shielded cable

Flang Type Multi-Axis Load Cell 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Force Sensor

Flang Type Multi-Axis Force Sensor 5kN 10kN 20kN 30kN 50kN 100kN Triaxial Load Cell

Click here to download datasheet
