Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

  • 1
  • 2
  • 3

Brand Name : Forsentek

Model Number : F3W

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : 599usd/pc

Payment Terms : Paypal, T/T

Supply Ability : 1185pcs/month

Delivery Time : 1-5 weeks

Packaging Details : 1pc/box

Usage : 3-axis force measurement

Type : Triaxial Load Cell

Force range : 10N 20N

Output : Analog sensor

Load direction : Fx/Fy/Fz

Contact Now

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

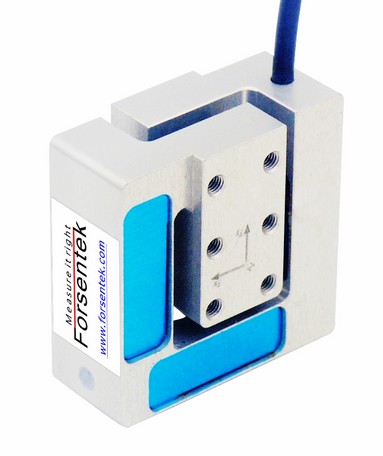

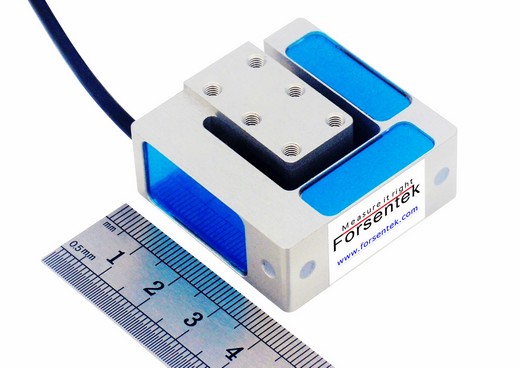

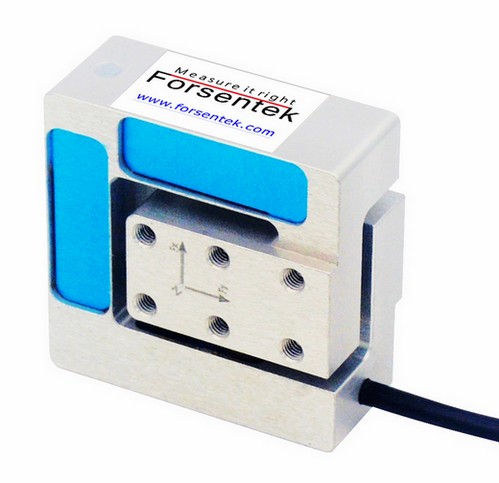

The F3W miniature multi-axis load cell is a high-precision sensor specifically designed for force measurement in compact, space-constrained environments. Featuring a small footprint of just 40 x 40 mm and a low profile height of 20 mm, this sensor is constructed from lightweight yet durable aluminum, making it suitable for delicate installations without adding excessive mass. The F3W is available in rated capacities of 10N and 20N, allowing it to cater to low-force measurement requirements with high sensitivity and accuracy.

What sets the F3W apart is its ability to measure forces in three orthogonal directions—Fx, Fy, and Fz—simultaneously. Unlike traditional single-axis sensors that require complex vector resolution for multi-directional force analysis, the F3W offers direct output on each axis. It can accurately measure both tension and compression forces along all three axes, with polarity determined by the installation configuration, thereby simplifying signal interpretation and data analysis.

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

This triaxial force sensor is particularly well-suited for advanced applications in both industrial automation and scientific research. Typical use cases include robotic force feedback control, real-time gripper force monitoring in automation systems, anti-collision feedback mechanisms, medical device testing, haptic interface development, and joystick or control lever calibration. Its small size makes it ideal for integration into compact tools, surgical instruments, or embedded systems where space is a critical factor.

In addition to its standard offerings, the F3W 3D load cell is also available in customized configurations to suit unique application needs. Customizations may include tailored mounting options, different force ranges, specialized output connectors, or additional environmental protection features. This level of flexibility ensures that the F3W can be seamlessly integrated into a wide variety of systems, providing accurate, stable, and reliable force measurement across multiple axes.

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

Ordering code of multi-axis load cell F3W

Ordering

code

Capacity
Fx=Fy=Fz
F3W-10N 10N
F3W-20N 20N

Specifications

Rated Capacity

10N / 1kgf / 2.2lb

20N / 2kgf / 4.5 lb

Sensitivity 1.0mV/V
Excitation 3-12V
Zero balance ±0.1mV/V
Non-linearity ±0.3% of the capacity
Hysteresis ±0.3% of the capacity
Non-repeatability ±0.1% of the capacity
Creep(3min) ±0.2% of the capacity
Safe overload 150% of the capacity
Ultimate overload 200% of the capacity
Compensated temperature 0...+40oC
Operating temperature -10...+60oC
Temperature shift on zero ±0.03% R.O./oC
Temperature shift on span ±0.02% R.O./oC
Input resistance 170±10 ohms
Output resistance 500±20 ohms
Insulation resistance >2000M ohms
Ingress protection IP40
Material of element

Aluminum

Cable

Ø3*3000mm 8-wire shielded cable

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

Miniature 3D Force Sensor 10N 20N Multi-axis Load Cell 1kg 2kg

Click here to download datasheet
