Usage : Force measurement
Theory : Press load cell
Output : Analog Sensor
Capacity : 20N 50N 100N 200N 500N 1000N 2000N
Force direction : Tension and compression
Connection : Flange to flange
Flange to flange press load cell 5kg 10kg 20kg 50kg 100kg 200kg
Flange to flange press load cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature force sensor FFG has 20N / 50N / 100N / 200N / 500N / 1000N / 2000N seven rated capacities to choose from,this model is suitable for both tension tension and compression force measurement.Stainless steel construction, flange-to-flange mounting, compact size, bidirectional force measurement, high accuracy, competitive price, miniature force sensor FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
Specifications
Capacity | 50N / 5kg / 11.2 lb 100N / 10kg / 22.5lbf 200N / 20kg / 45 lbf 500N / 50kg / 112lb 1000N / 100kg / 225 lbf 2000N / 200kg / 450lb |
Rated output | 2.0 mV/V |
Excitation | 3-15V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.1% R.O. |
Hysteresis | ±0.1% R.O. |
Nonrepeatability | ±0.05% R.O. |
Creep(5min) | ±0.05% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.02% R.O./oC |
Temperature shift span | ±0.02% R.O./oC |
Input resistance | 380±30 ohms |
Output resistance | 350±5 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP62 |
Material of element | Stainless steel |
Cable | Ø3*3000mm 4-core shielded |
Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |

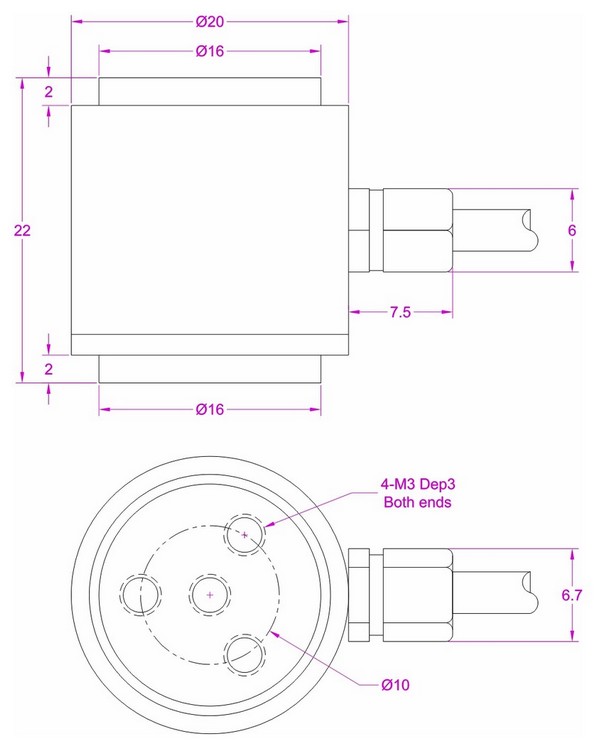

270Dimensions(Unit in "mm")
Click here to download datasheet
![]() |

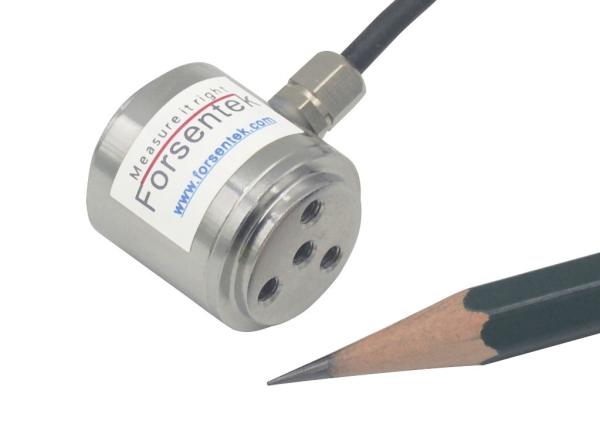

Flange to flange press load cell 5kg 10kg 20kg 50kg 100kg 200kg Images |
