Usage : Robot joint torque measurement
Type : Low profile through hole torque meter
Output : Analog Sensor
Capacity : 5NM 10NM 20NM 30NM 40NM
Connection : Flange to flange

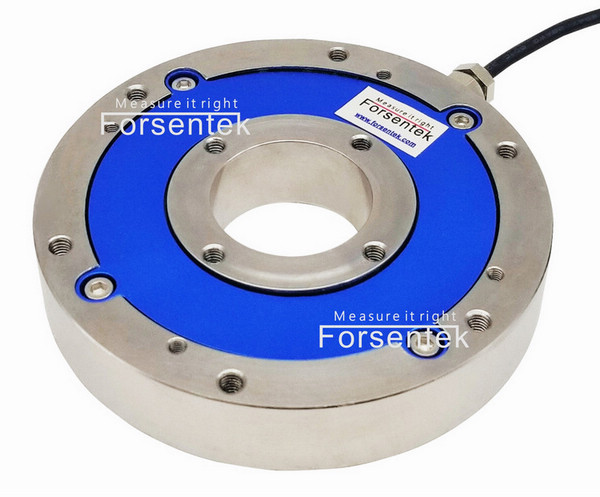

Low profile torque transducer 5NM 10NM 20NM 30NM thru-hole torque sensor
Low profile torque transducer FTHC is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated output,model FTHC offers 5NM / 10NM / 20NM / 30NM / 40NM measuring ranges to choose from.Low profile design,through hole structure,flange to flange mounting,working with servo or stepper motor,joint torque sensor FTHC can help make robot joint motion control more smoother.Besides the standard specifications,custom made service according to client's specific requrements is also available at Forsentek.
Specifications
Rated capacity | 5NM / 44 lbf*in / 0.5kgf*m |
Rated output | 1.0 mV/V |
Excitation | 3-12V |
Zero balance | ±3% F.S. |
Non-linearity | ±0.3% F.S. |
Hysteresis | ±0.3% F.S. |
Non-repeatability | ±0.1% F.S. |
Creep(10min) | ±0.1% F.S. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temp. | -10...+40oC |
Operating temp. | -20...+60oC |
Temp. shift zero | ±0.02% F.S./oC |
Temp. shift span | ±0.02% F.S./oC |
Input resistance | 700±100 ohms |
Output resistance | 700±100 ohms |
Insulation resistance | >2000M ohms |
Ingress protection | IP50 |
Material of element | Stainless steel |
Cable | Ø3.2*3000mm 4-core shielded cable |
Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Low Profile Thru-hole torque sensor 5NM 10NM 20NM 30N 40NM

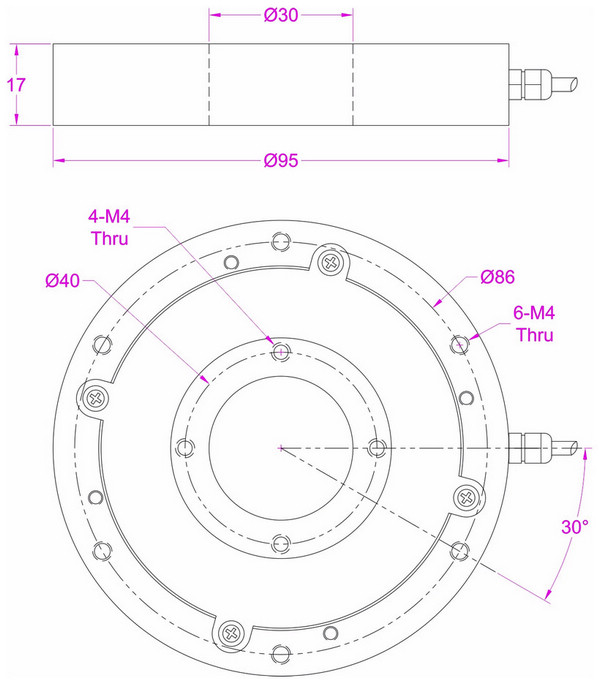

Dimensions(unit in milimeter)
Click here to download datasheet
![]() |

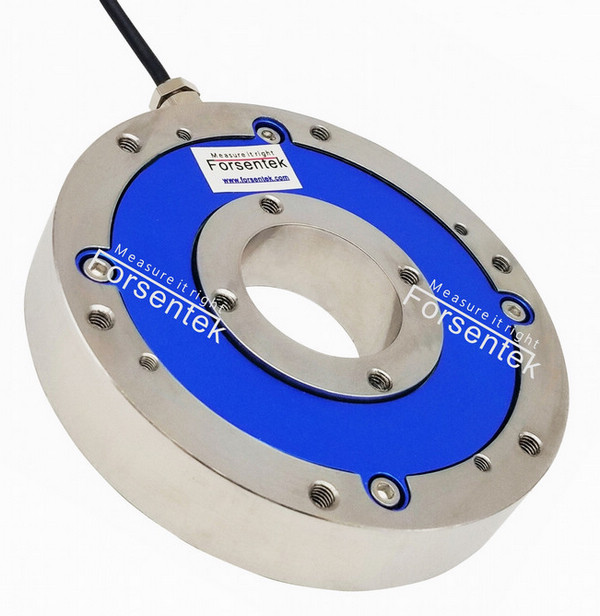

Low profile torque transducer 5NM 10NM 20NM 30NM thru-hole torque sensor Images |
