Brand Name : Forsentek
Model Number : FT03
Place of Origin : China
MOQ : 1pc
Payment Terms : T/T,Western Union or Paypal
Supply Ability : 5000pcs/month
Delivery Time : 3~20 working days
Packaging Details : 1pc/box
Usage : Torque measurement unit
Theory : Strain gauge torque sensor
Output : Analog Sensor
Capacity : 20kNm 30kNm 40kNm 50kNm

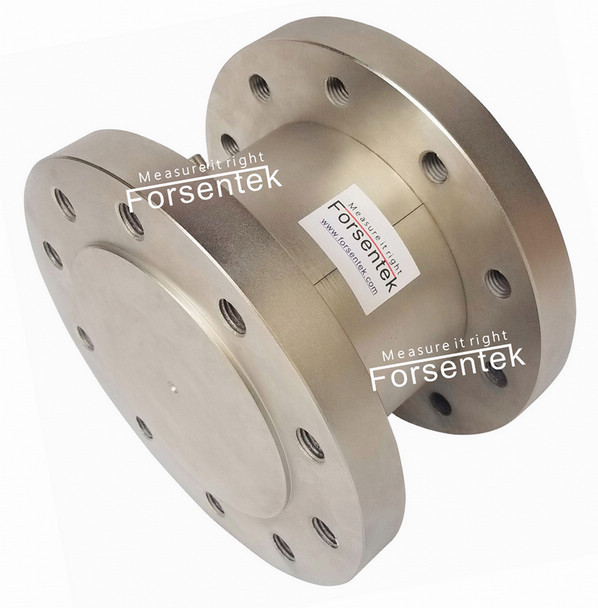

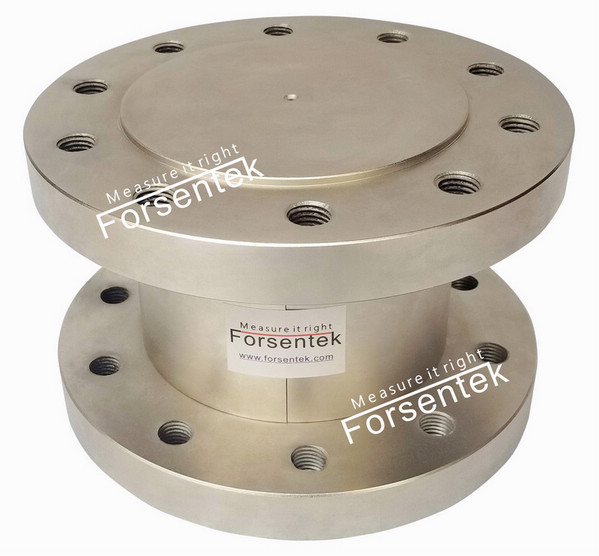

Flange torque sensor 20kNm reaction torque transducer 200klbf-in
Flange type reaction torque transducer FT03 is made of high stiffness alloy steel based on strain gauge technology,flange-to-flange torque transducer FT03 delivers mV/V signal from wheatstone bridge bonded on a specially machined body,in-house calibration certificate in both clockwise and anticlockwise will be provided to guarantee the sensor performance,mating connector and mating cable is included.Flange to flange design makes it easy to mount FT03 to existing strutures.Torque load cell FT03 is available in a very wide measuring range from 200NM up to 100kNm,you may find FT03 suitable for applications such as motor torque measurement,test bench applications,screw driver calibration,fatigue testing,twist measurement,motor dynamometers,actuator test as so on.Besides the standard specifications,Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
Specifications
Capacity | 20kNM 30kNM 40kNM 50kNM |
Rated output | 1.5mV/V |
Excitation | 3-15V |
Zero balance | ±2% R.O. |
Nonlinearity | <0.5% R.O. |
Hysteresis | <0.5% R.O. |
Nonrepeatability | <0.2% R.O. |
Creep(10min) | ±0.1% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.02% R.O./oC |
Temperature shift span | ±0.02% R.O./oC |
Input resistance | 1020±100 ohms |
Output resistance | 1020±10 ohms |
Insulation resistance | >5000M ohms |
Ingress protection | IP62 |
Material of element | Alloy steel |
Cable | Ø5.5*3000mm |
Wiring code | Red--E+ Green--E- Yellown--S+ White--S- |
Dimensions(unit in milimeter)
![]() |
