Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm

Name: Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm
Brand: Forsentek
Price: 1 USD

Quality Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm wholesale

Brand Name : Forsentek

Model Number : FNL

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5900pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Weight Measurement Transducer

Capacity : 60kg 100kg 200kg 350kg

Type : Off-center loadcell

Output : Analog Sensor

Contact Now

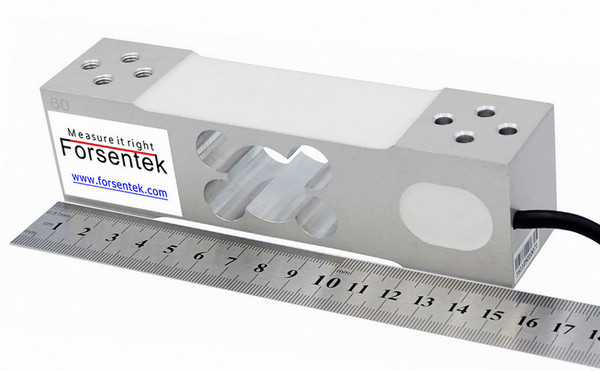

Off center load cell 60kg 100kg 200kg 300kg platform sizes up to 400x400mm

Off center load cell FNL is a strain gauge based weight sensor which offers 0-60kg / 0-100kg / 0-200kg / 0-350kg four measuring ranges to choose from.High accuracy load cell FNL delivers maximum 0.015% non-linearity of the full scale.Loadcell FNL is corner trimmed for platform sizes up to 400x400mm which makes it suitable for off-center load measurement. Load cell sensor FNL can deliver stable performance within the declared working temperature range thanks to its temperature compensation process.You may find FNL suitable for applications such as beehive weight measurement, packing machines, platform scales, feeding machines and so on.

Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm

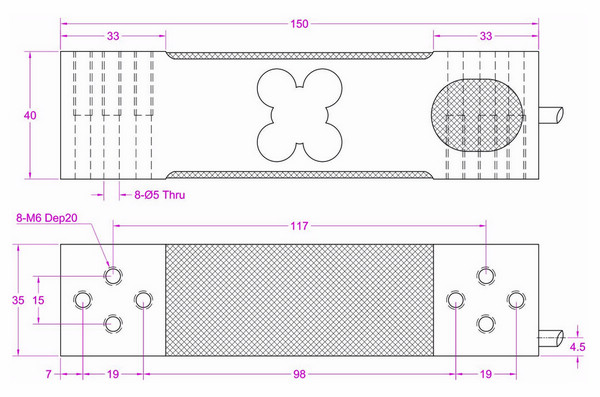

Dimensions(Unit in "mm",same size for 60kg/100kg/200kg/350kg)

Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm

Specifications

Capacity	60kg / 600N / 132lb 100kg / 1kN / 220 lbf 200kg / 2kN / 440lbf 350kg / 3.5kN / 770 lb
Rated output	2.0 mV/V
Excitation	3-15V
Zero balance	±0.1mV/V
Nonlinearity	±0.015% R.O.
Hysteresis	±0.015% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	405±10 ohms
Output resistance	350±3 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø5*1500mm 4-core shielded
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

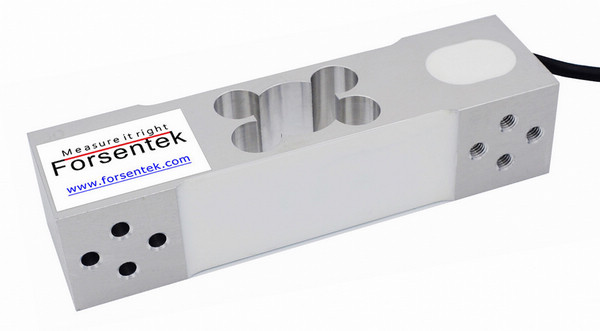

Off center load cell 60kg 100kg 200kg 300kg platform sizes up to 400x400mm

Off Center Load Cell 60kg 100kg 200kg 300kg Platform Sizes Up To 400x400mm

Click here to download datasheet
