Miniature shaft torque sensor|Inline rotary torque transducer-Customizable

Name: Miniature shaft torque sensorInline rotary torque transducerCustomizable
Brand: Forsentek
Price: 1 USD

Quality Miniature shaft torque sensor|Inline rotary torque transducer-Customizable wholesale

Brand Name : Forsentek

Model Number : FYAH

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2050pcs/month

Delivery Time : 2-4 weeks

Packaging Details : 1pc/box

Certification : CE

Usage : Rotating torque measurement

Theory : Micro dynamic torque sensor

Output : Analog Sensor

Torque measurement direction : Clockwise&Counterclockwise

Capacity : 1NM 2NM 3NM 5NM(Customizable)

Contact Now

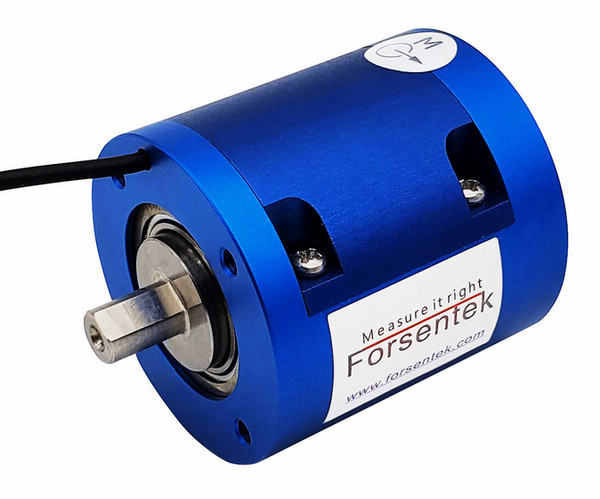

Miniature shaft torque sensor 1NM 2NM 3NM 5NM Inline rotary torque transducer

Small size rotary torque sensor FYAH is intended for rotating torque measurement in both clockwise and anticlockwise direction. Dynamic torque sensor FYAH offers 1NM / 2NM / 3NM / 5NM four rated capacities to choose from,transducer FYAH should be mounted between motor and load through couplings, the housing will remain still during measurement while the shaft will rotate along with motor shaft. Custom made service is available for other measuring ranges with similar structure. Compact structure makes transducer FYAH especially suitable for torque measurement applications with limited mounting space.

Miniature shaft torque sensor|Inline rotary torque transducer-Customizable

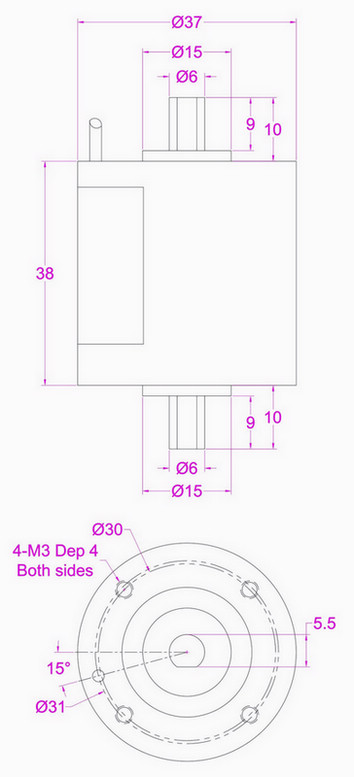

Dimensions

Miniature shaft torque sensor|Inline rotary torque transducer-Customizable
Specifications

Rated capacity	1NM 2NM 3NM 5NM (Customizable)
Rated output	1.0 mV/V
Excitation	3-12V
Zero balance	±0.05mV/V
Nonlinearity	±0.25% R.O.
Hysteresis	±0.25% R.O.
Nonrepeatability	±0.1% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	120% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+55^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	385±30 ohms
Output resistance	350±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP40
Material of element	Stainless steel
Cable	Ø2*2000mm 4-core
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

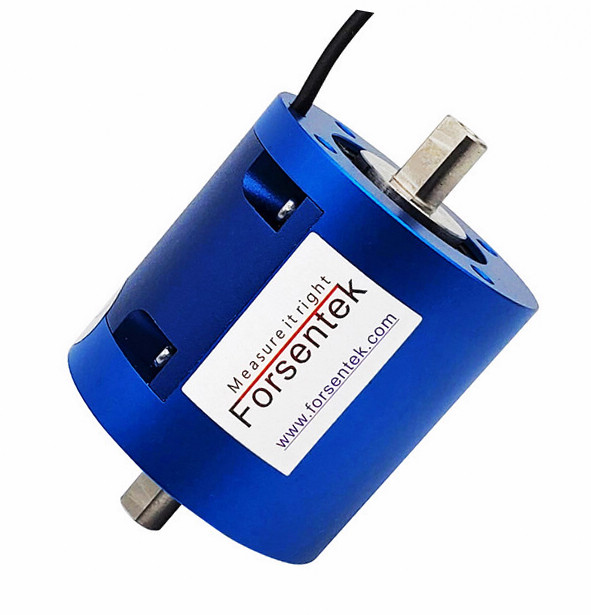

Miniature shaft torque transducer 1NM 2NM 3NM 5NM inline torque sensor

Miniature shaft torque sensor|Inline rotary torque transducer-Customizable

Click here to download datasheet
