Pull push load cell pull press force sensor

Place of Origin : China

Brand Name : Forsentek

Model Number : FL51

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Certification : CE

Usage : Pull press force measurement

Theory : Strain gauge force sensor

Output : Analog Sensor

Contact Now

Pull push load cell pull press force sensor

Features

  • CE certified
  • Stainless steel construction,in-line structure.
  • M12 threads on both sides,easy to install.
  • Pull press force measurement.

Application

  • Axial force measurement
  • Air cylinder pull push force measurement
  • Welding force control
  • Testing machine
  • Assembly line

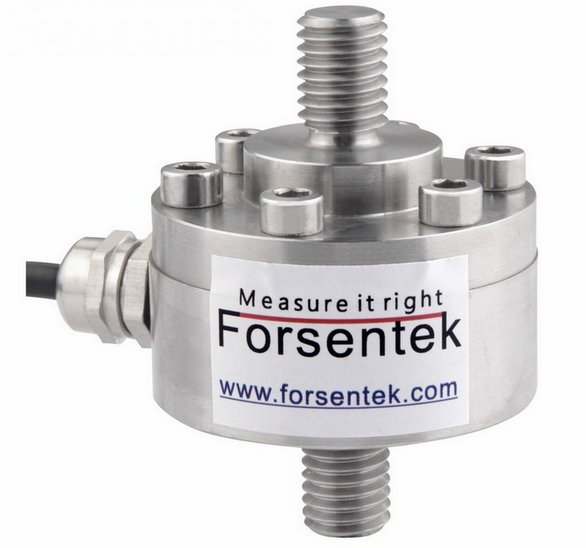

Pull press force sensor

Pull push load cell pull press force sensor

Specifications

Capacity 1KN 2KN 5KN 10KN 20KN
Rated output 1.3-1.8mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.5% R.O.
Hysteresis ±0.5% R.O.
Nonrepeatability ±0.2% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.05% R.O./10oC
Input resistance 350±30 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP66
Material of element Stainless steel
Cable Ø5*1500mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

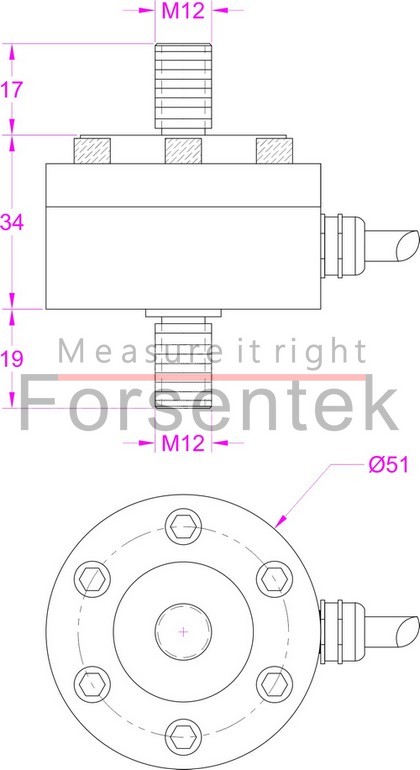

Dimensions

Pull push load cell pull press force sensor

Ordering code: FL51-1KN, FL51-2KN, FL51-5KN, FL51-10KN, FL51-20KN
