0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM

Product Categories
Forsentek Co., Limited
Contact Now

0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM

  • 1
  • 2
  • 3

Brand Name : Forsentek

Model Number : FY02

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Usage : Rotating torque measurement

Theory : Strain gauge torque sensor

Output : Analog Sensor

Torque measurement direction : Clockwise&Counterclockwise

Torque capacity : 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM

Contact Now

0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM

  • CE approved
  • Strain gauge technology,analog output
  • Shaft to shaft connection
  • Torque measurement in both clockwise and counterclockwise direction
  • Up to 4000RPM
  • Rotating shaft torque measurement,motor torque measurement

0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM
Specifications

Capacity

0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM
Rated output 1.0 mV/V
Excitation 3-15V
Zero balance ±2% R.O.
Nonlinearity ±0.15% R.O.
Hysteresis ±0.15% R.O.
Nonrepeatability ±0.05% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 120% F.S.
Ultimate overload 200% F.S.
Compensated temp. -10...+40oC
Operating temp. -20...+60oC
Temp. shift zero ±0.01% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 350±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP50
Material of element Stainless steel
Cable Ø5.5*3000mm with mating connector included
Wiring code

Red--Exc+ Green--Exc-
Yellow--Sig+ White--Sig-

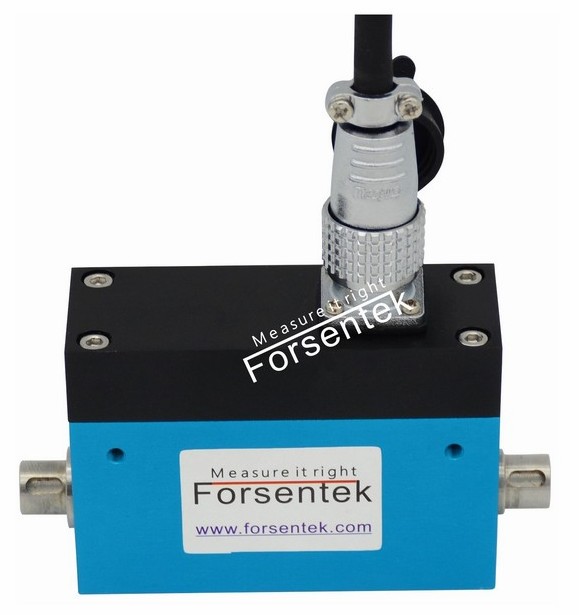

Rotary torque meter for motor torque measurement
0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.

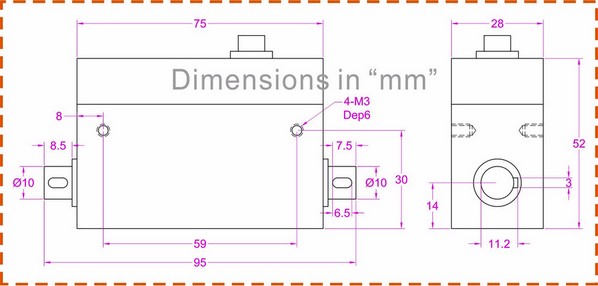

Dimensions(in milimeter)

0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM

0.1NM DC motor torque measurement 0.2NM rotating torque measurement 0.5NM
