Miniature force sensor 200N Miniature S-Beam Jr. Load Cell 20kg

Brand Name : Forsentek

Model Number : FSSM

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2650pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Tension compression force measurement

Type : Miniature jr s type load cell

Output : Analog Sensor

Capacity : 10N 20N 50N 100N 200N 300N 500N 1KN

Connection : M4 threaded hole

Contact Now

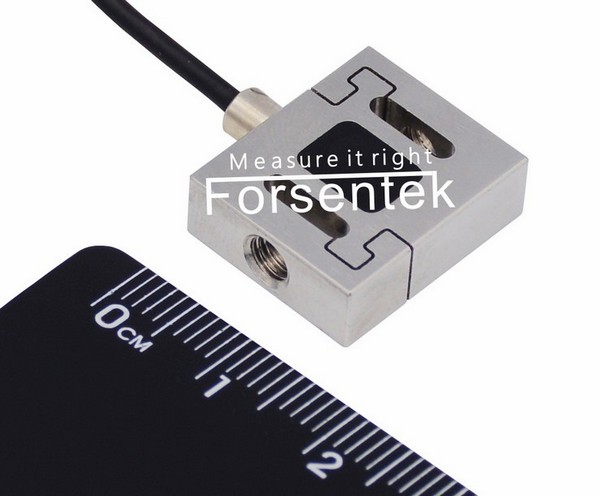

Miniature force sensor 200N Miniature S-Beam Jr. Load Cell 20kg
Miniature S-Beam Jr. Load Cell FSSM is made of stainless steel based on strain gauge technology with maximum 0.1% non-linearity,model FSSM is available in 10N / 20N / 50N / 100N / 200N / 300N / 500N / 1000N measuring ranges,it can be used for both tension and compression force measurement.The metric threaded holes located on both ends can be used to mount attachments to fit various industrial applications.The compact size makes model FSSM suitable for applications with limited mounting space.Miniature load cell FSSM is interchangeable with Futek Jr. Miniature S-Beam Load Cell LSB200 in most cases.
Miniature force sensor 200N Miniature S-Beam Jr. Load Cell 20kg
Specifications

Capacity10N / 1kgf / 2.2 lbf
20N / 2kgf / 4.4lbf
50N / 5kgf / 11.2lbf
100N / 10kgf / 22 lbf
200N / 20kgf / 45 lbf
300N / 30kgf / 67 lbf
500N / 50kgf / 112 lbf
1kN / 100kgf / 224 lbf
Rated output2.0mV/V
Excitation3-12V
Zero balance±0.05mV/V
Nonlinearity±0.1% R.O.
Hysteresis±0.1% R.O.
Nonrepeatability±0.05% R.O.
Creep(5min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.03% R.O./oC
Temperature shift span±0.02% R.O./oC
Input resistance380±30 ohms
Output resistance350±5 ohms
Insulation resistance>2000M ohms
Ingress protectionIP62
Material of elementStainless steel
CableØ2*4000mm 4-core shielded
Wiring code

Compression@
Red--Excitation+ Black--Excitation-
Green--Signal+ White--Signal-


Miniature force sensor 1000N 500N 300N 200N 100N 50N 20N 10N
Miniature force sensor 200N Miniature S-Beam Jr. Load Cell 20kg

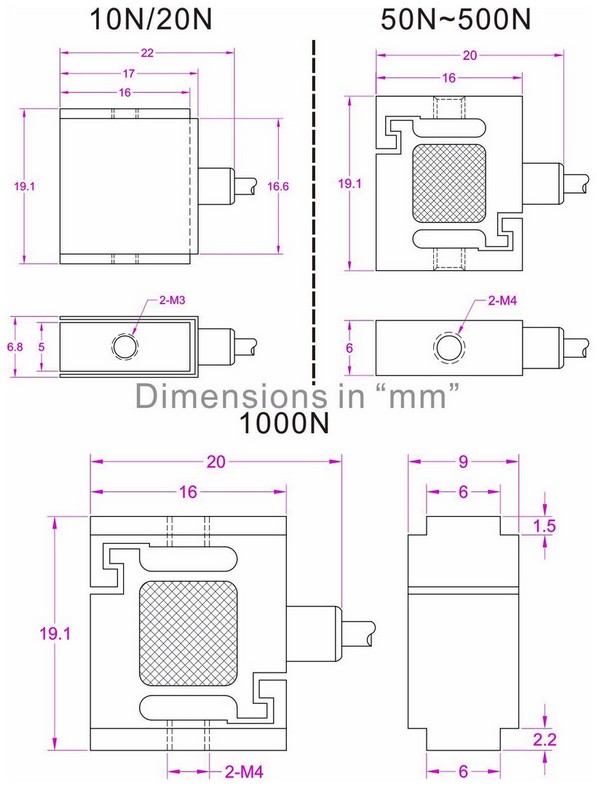

Dimensions(in milimeter)

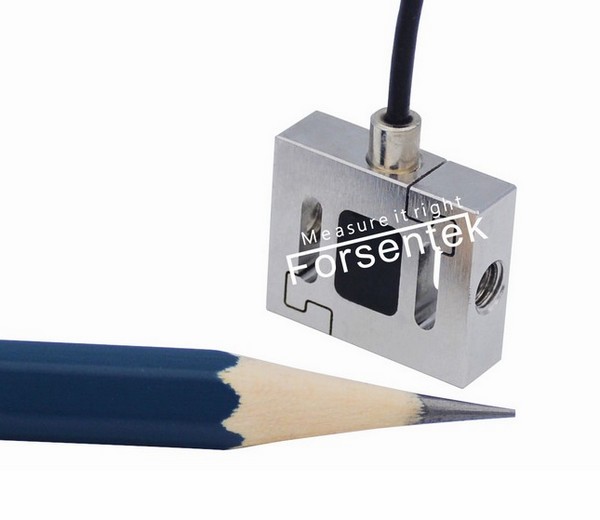

Miniature force sensor 200N Miniature S-Beam Jr. Load Cell 20kg
Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN

Click here to download datasheet
